Capsule Checkweigher Reduce Production Cost and Improve the Quality of Proucts CMC-1800
----Weigh each capsule and separate the unqualified ones!
● Product Introduction:
The working efficiency of CMC (Capsule Weight Checker) series can be increased infinitely with its creative working mode — “extendable unit structure” and “unlimited parallel connection”. Therefore, Capsule Weight Checker can be integrated to any capsule filling machine to weigh every capsule from the production.
● Performance and advantages:
1. Capsule Weight Checker could identifying the qualified and unqualified capsule upon a specific range set in advance. The light flash tells when it detects the unqualified.
2. Capsule Weight Checker can make a comprehensive data statistics and print them out.
3. Product information could be saved automatically and permanently and you could check in as much as you want.
4. Touch screen and friendly man-machine interface make the operation more simple and clear.
● Specifications:
| Model | CMC-600 | CMC-1200 | CMC-1800 | …(etc.) |
| Output Capacity | 600 pcs/min | 1200 pcs/min | 1800 pcs/min | n*600 pcs/min |
| Applicable Capsule Size | 00#-5# | 00#-5# | 00#-5# | 00#-5# |
| Weighing Range | 10-2000mg | 10-2000mg | 10-2000mg | 10-2000mg |
| Accuracy | ±1mg/±2mg/±3mg | ±1mg/±2mg/±3mg | ±1mg/±2mg/±3mg | ±1mg/±2mg/±3mg |
| Voltage | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz |
| Air Supply | 0.4-0.7Mpa | 0.4-0.7Mpa | 0.4-0.7Mpa | 0.4-0.7Mpa |
| Power Rating | 350W | 400W | 450W | … |
| Dimensions | 350*450*1600 | 550*450*1600 | 750*450*1600 | … |

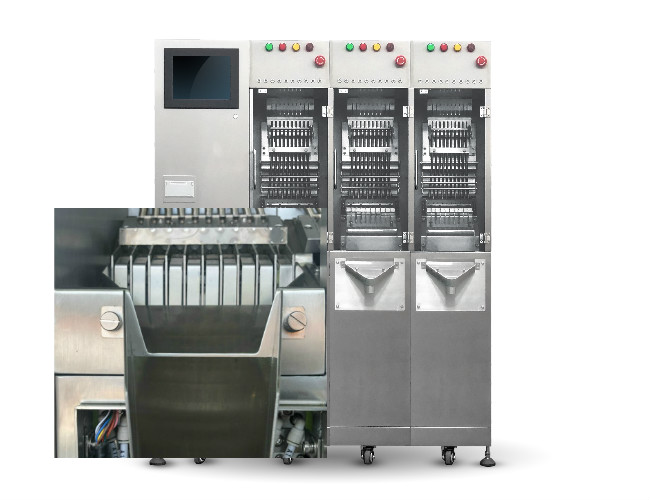

● Picture:
For more information, please click the link below where we uploaded the relevant video on You Tube
https://youtu.be/uzHFp0SQfUo
