High Accuracy Infinite Parallel Connection Capsule Weight Checker CMC-1200
----Weigh each capsule and separate the unqualified ones!
● Product Introduction:
CMC (Automatic Capsule Checkweigher) measures capsules one by one, classifying them into good ones and rejects according to the predetermined weight range. Capsule Weight Checker operates perfectly with high efficiency, reduces costs and helps to improve capsule quality.
Meanwhile, the working efficiency of CMC (Capsule Weight Checker) series can be increased infinitely with its creative working mode — “extendable unit structure” and “unlimited parallel connection”. Therefore, Capsule Weight Checker can be integrated to any capsule filling machine to weigh every capsule from the production.
● Performance and advantages:
1. Capsule Weight Checker could classify: capsule sizes of 00#,0#,1#,2#,3#,4#,5#; all kinds of safety capsule; long tablet shaped like capsule (other shapes of tablets could use TMC series do detect their weight).
2. Capsule Weight Checker uses "unit extension structure" and "infinite parallel connection" have greatly improved the work efficiency. It's just for you to choose the equipment size according to your product condition.
3. Capsule Weight Checker can make a comprehensive data statistics and print them out.
● Specifications:
| Model | CMC-600 | CMC-1200 | CMC-1800 | …(etc.) |
| Output Capacity | 600 pcs/min | 1200 pcs/min | 1800 pcs/min | n*600 pcs/min |
| Applicable Capsule Size | 00#-5# | 00#-5# | 00#-5# | 00#-5# |
| Weighing Range | 10-2000mg | 10-2000mg | 10-2000mg | 10-2000mg |
| Accuracy | ±1mg/±2mg/±3mg | ±1mg/±2mg/±3mg | ±1mg/±2mg/±3mg | ±1mg/±2mg/±3mg |
| Voltage | 220V 50Hz | 220V 50Hz | 220V 50Hz | 220V 50Hz |
| Air Supply | 0.4-0.7Mpa | 0.4-0.7Mpa | 0.4-0.7Mpa | 0.4-0.7Mpa |
| Power Rating | 350W | 400W | 450W | … |
| Dimensions | 350*450*1600 | 550*450*1600 | 750*450*1600 | … |

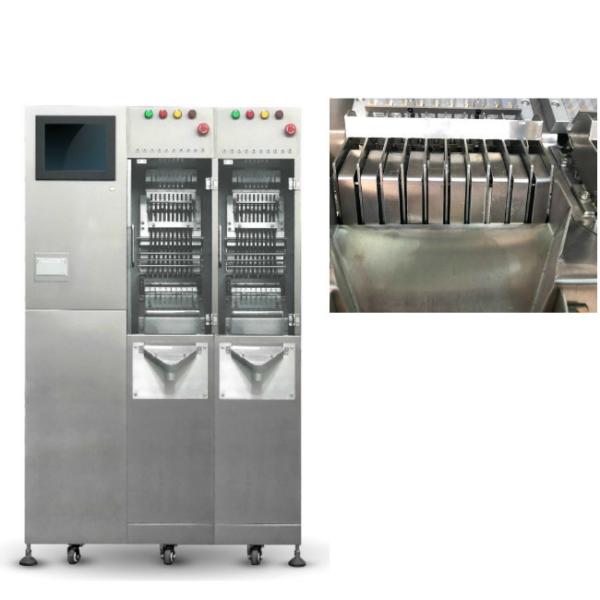

● Picture:
For more information, please click the link below where we uploaded the relevant video on You Tube
https://youtu.be/uzHFp0SQfUo
